Robotic Floor Printer




What is it?

At Straub Surveying, we are committed to delivering precise, efficient, and reliable surveying solutions for construction projects of all sizes. As leaders in the field, we have integrated cutting-edge technology into our services, including the adoption of HP SitePrint, a revolutionary robotic floor printer. This tool allows us to automate construction layouts by printing digital blueprints directly onto job site floors, enhancing accuracy and streamlining workflows. Below, we explore the innovative nature of HP SitePrint, its key benefits, and the exceptional precision it brings to our projects.

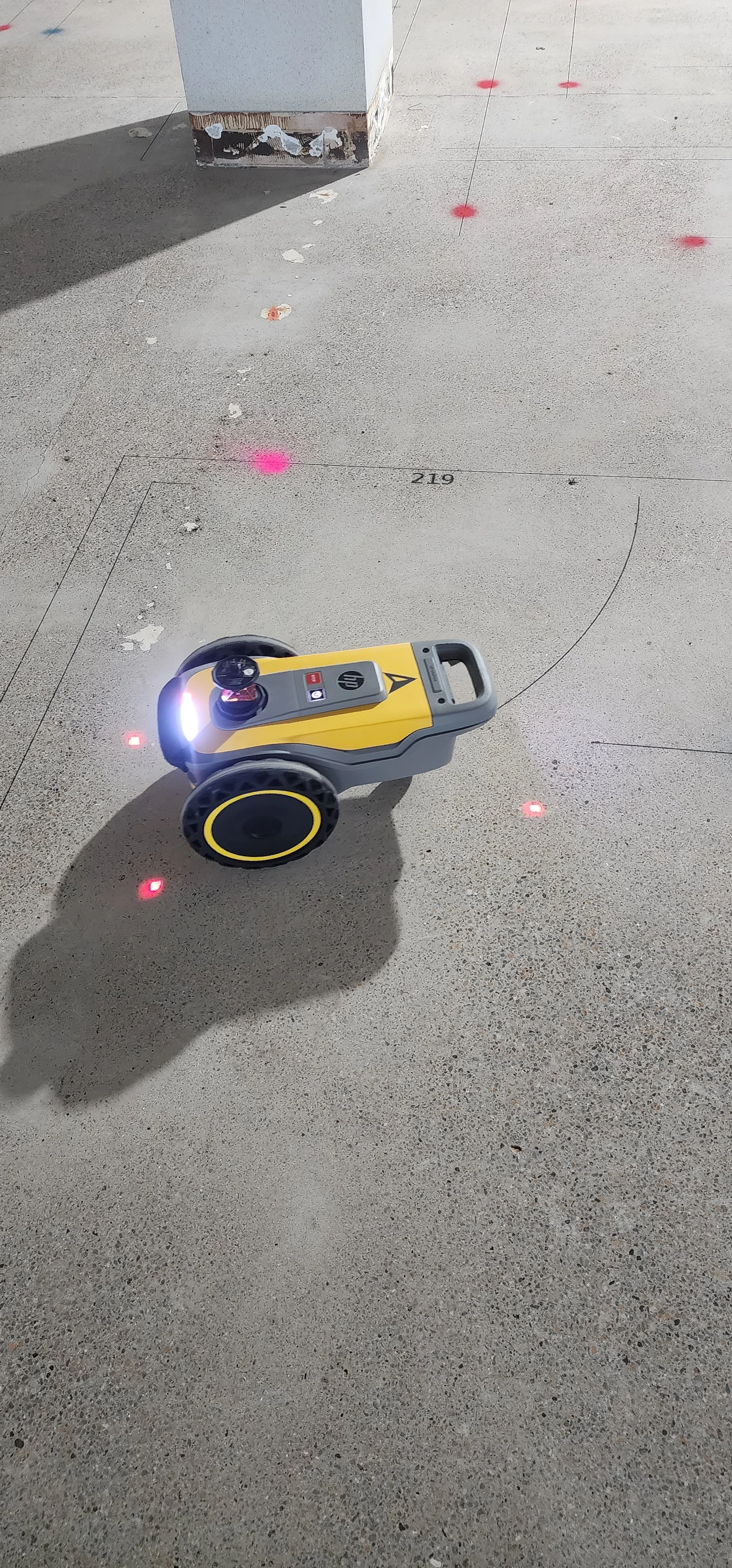

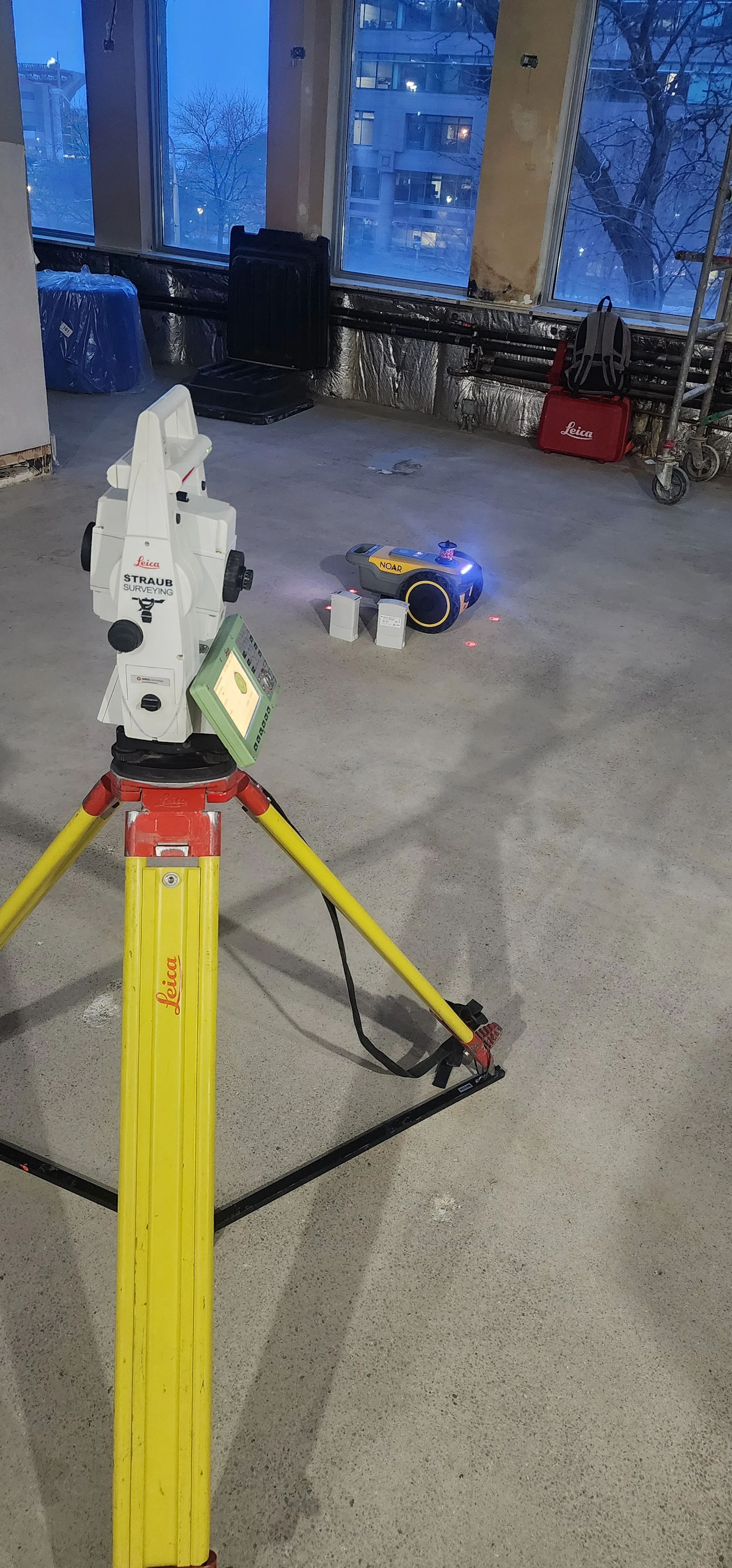

HP’s robotic layout floor printer transforms 2D CAD files into full-scale prints on construction site floors. It combines HP's expertise in printing technology with advanced robotics to create lines, points, arcs, and even door swings, room numbers and text directly on surfaces like concrete, vinyl, plywood, or tarmac. The system works seamlessly with the Leica Geosystems Robotic Total Stations that we use on every project.

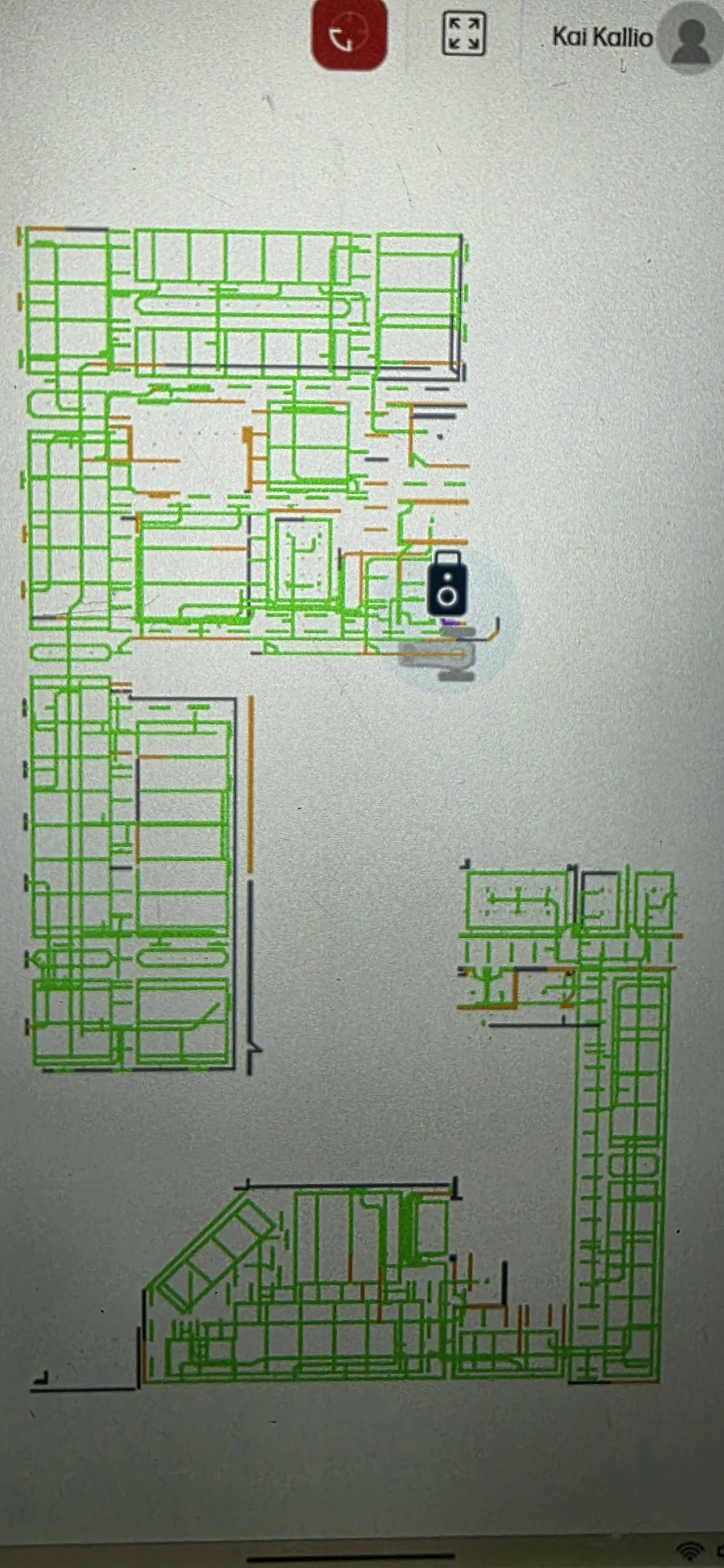

The process is straightforward: We work in coordination with our customers to get what they want printed. Then, we prepare a 2D .dxf CAD file using an HP plugin, upload it to the cloud for sharing and version control, set up control points on site, and let the robot handle the printing autonomously. With its tri-wheeled design, internal tracking prism, and wireless connectivity, HP SitePrint navigates sites independently, providing live progress and task updates via any internet-enabled device.



The Construction Innovation!

The Innovative Nature of HP SitePrint represents a breakthrough in construction technology by merging robotics, automation, and precision printing to redefine floor marking.

Key innovative features include:

  • Autonomous Navigation and Obstacle Avoidance: The robot uses sensors for cliA detection and real-time route adjustments, allowing it to operate safely on rough or bumpy surfaces without constant human intervention.

  • Cloud-Based Management: Enables remote sharing of CAD f iles, job monitoring, and accounting reports, fostering better collaboration among teams.

  • Floor Deviation Marking: A new feature that automates the marking of floor level variations, saving time and improving on-site communication by printing real-time data directly on the slab.

  • Versatile Ink Options: Semi-Permanent and Permanent Black, Red, or Blue Ink.

This innovation shifts traditional manual layout methods to a digital, automated process, reducing inefficiencies and leveraging HP's Multi Jet Fusion 3D printing technology for construction applications.



the benefits - why use this service

Benefits of Using HP SitePrint at Straub Surveying By incorporating HP SitePrint into our surveying services, we deliver faster, more cost-effective results for our clients. Here are the primary benefits:

  • Boosted Productivity: Achieves up to 10 times the efficiency of manual layouts, with printing speeds of up to 2,950 feet per hour and setup times under 10 minutes. This allows us to complete layouts quickly, freeing up skilled workers for other high-value tasks.

  • Cost Savings: Reduces rework, material waste, and labor costs by eliminating human errors and enabling precise, intricate designs without additional resources. Real-time cloud-based data tracking catches errors early in construction, reducing delays and keeping projects on budget.

  • Enhanced Accuracy and Quality: Automates the transfer of plans to the site, detecting design errors early and ensuring consistent executions. Printed text and notes on the floor provide clear instructions, reducing miscommunication.

  • Improved Safety and Versatility: Requires only one Surveyor and uses advanced sensors to avoid obstacles, lowering accident risks. Its compact, rugged design (under 25 pounds) makes it portable and adaptable to diverse job sites.

  • Time Efficiency: Autonomous operation and seamless integration streamline workflows, from CAD preparation to on-site execution, saving valuable hours on every project.

These advantages have allowed Straub Surveying to handle more complex projects with greater reliability, ultimately benefiting our clients through faster turnaround and reduced overall costs.
